Sliding Deformer

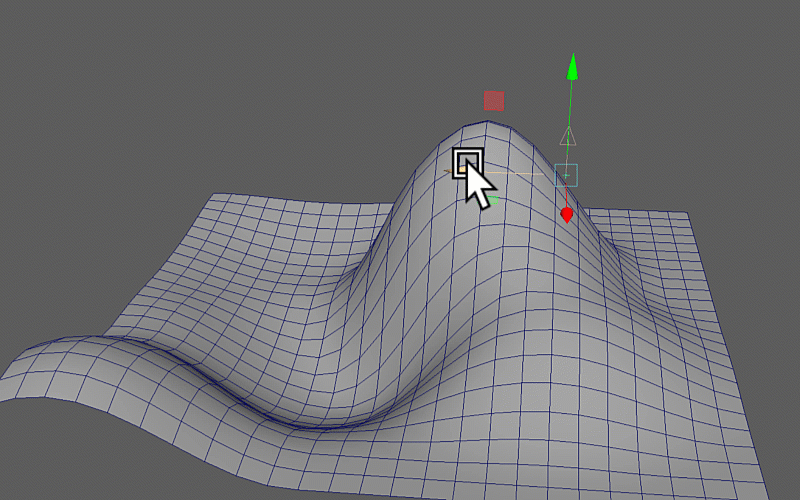

From version 5.21 in Windows you have a sliding deformer. It works by just defining a direction, and the vertices are sliding towards that direction along the mesh. It's basically just finding a path on the mesh. Alt text

With a bit of setup, you can create something like this:

How to use it

Here's a minimalistic python code to get it to work. When you run that, you should have a locator that when you move it around, it makes a sphere slide on its own. Before running the script, make sure you have the plugin kt_tbslide.mll active.

skin_mesh = cmds.polySphere(n="skin_mesh")[0]
ref_skin_mesh = cmds.polySphere(n="ref_skin_mesh")[0]
cmds.setAttr('%s.v' % ref_skin_mesh, False)

sLoc = cmds.spaceLocator()[0]

sDeformer = cmds.deformer('skin_mesh', type='tbslide', name='test')[0]
cmds.connectAttr('%s.worldMesh[0]' % ref_skin_mesh, '%s.refMesh' % sDeformer)
cmds.connectAttr('%s.t' % sLoc, '%s.target' % sDeformer)
cmds.setAttr('%s.multipl' % sDeformer, 1.0)

Reference Mesh

The reference mesh is where it will compute the path finding, so it has to be in the same topology as the main mesh. It should also stay at default, and most likely you'll have to adjust the shape.

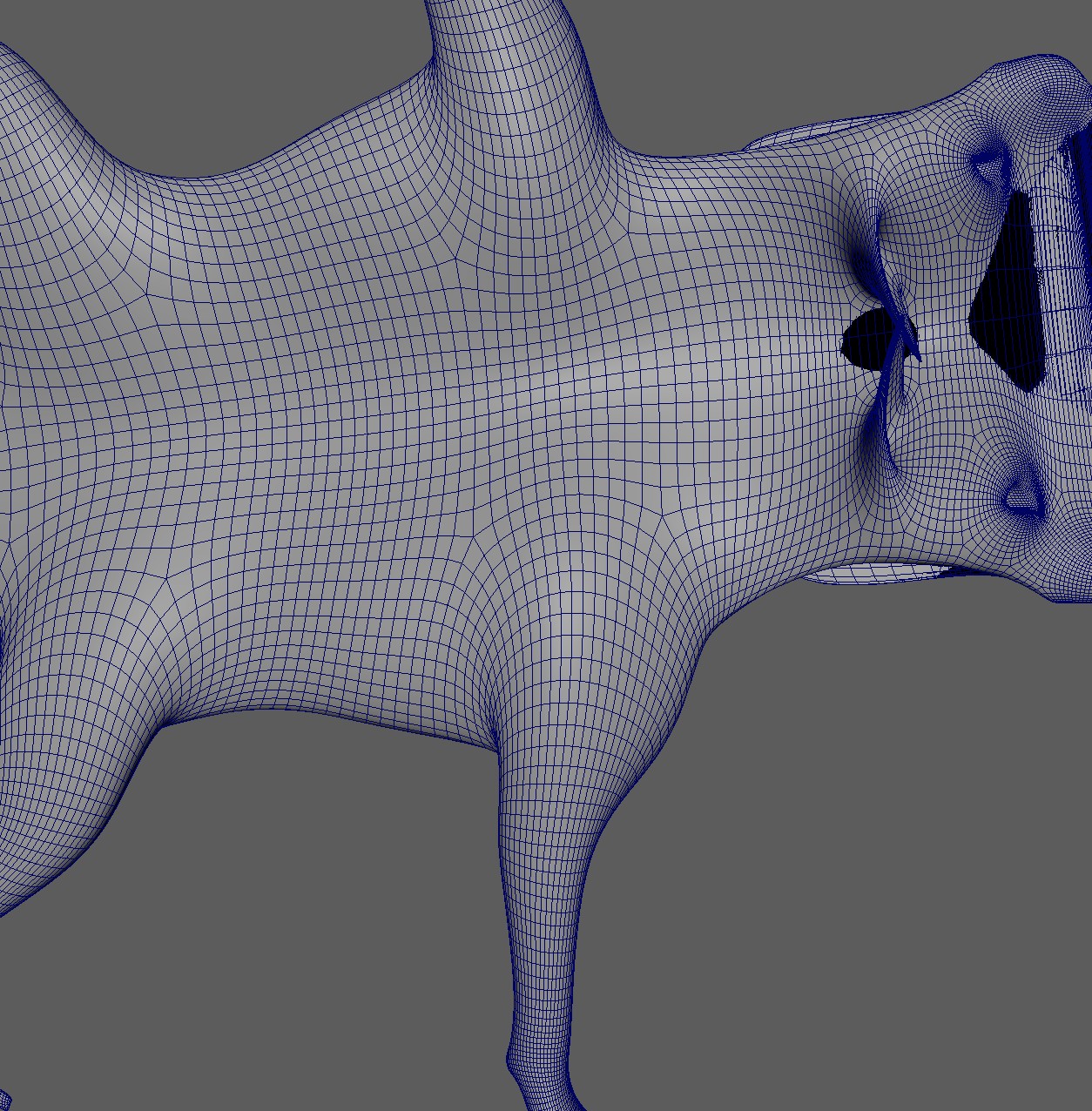

For the wolf scapula video you see at the top, in the image below you can see the reference mesh. The reason for this strangely looking upside down mesh is that you define the direction of the sliding just by a linear direction. And since the scapula skin has to slide up and down again, we'll have to define those different directions with the reference mesh.
Alt text
