Landmark Warp

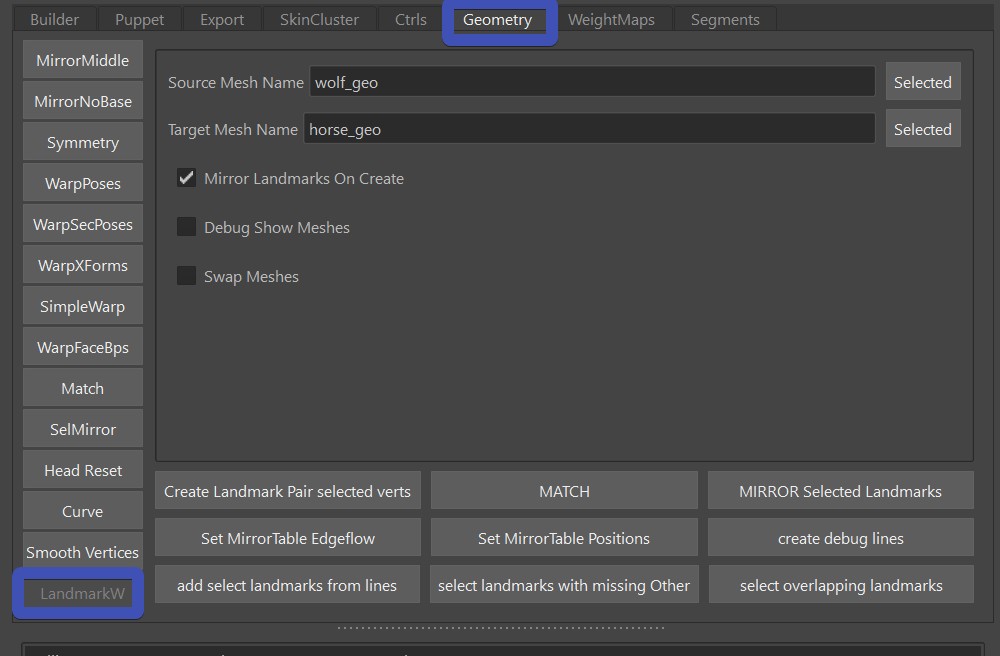

From v5.19 there's now the Landmark Warp tool.

Alt text

scipy

In order to the landmarkWarp, you need to have scipy installed. See in getting started how to install it.

Markers

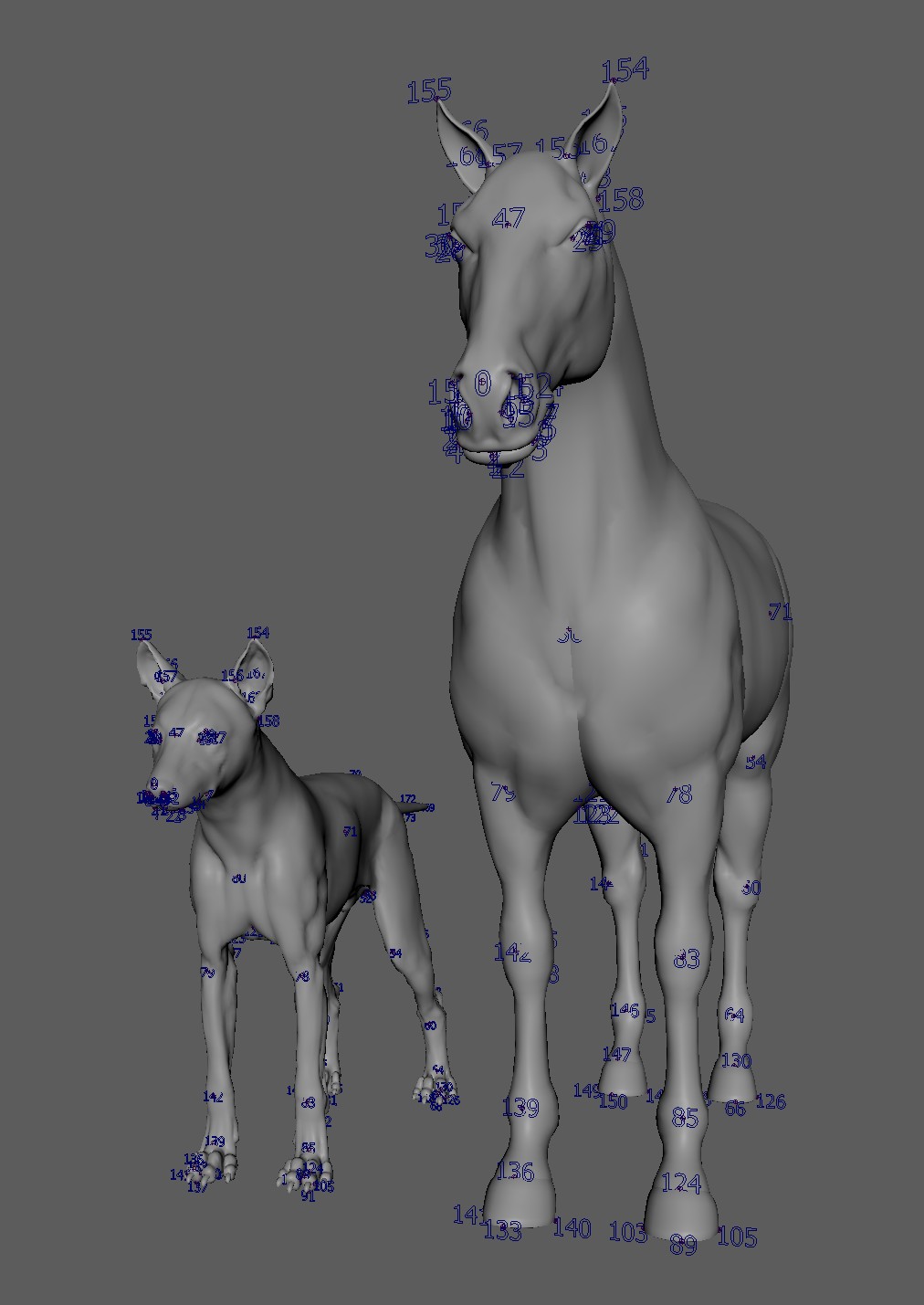

First you create thoes markers that look like in this image:
Alt text

To create a numbered marker, just select a vertex of the source mesh, a vertex of the target mesh, and click Create Landmark pair selected verts.

Mirror

If you have the checkbox Mirror Landmarks on Create activated, he'll create the mirrored one.
But it only works if you have the mirror table set. To do that, select the whole mesh and click either Set Mirrortable Edgeflow or Set Mirrortable Positions.

Inner Mouth Issues

This tool generally has trouble with inner mouth geometry, but there's an easy way to fix. Alt text

On the target mesh, delete the inner mouth faces!

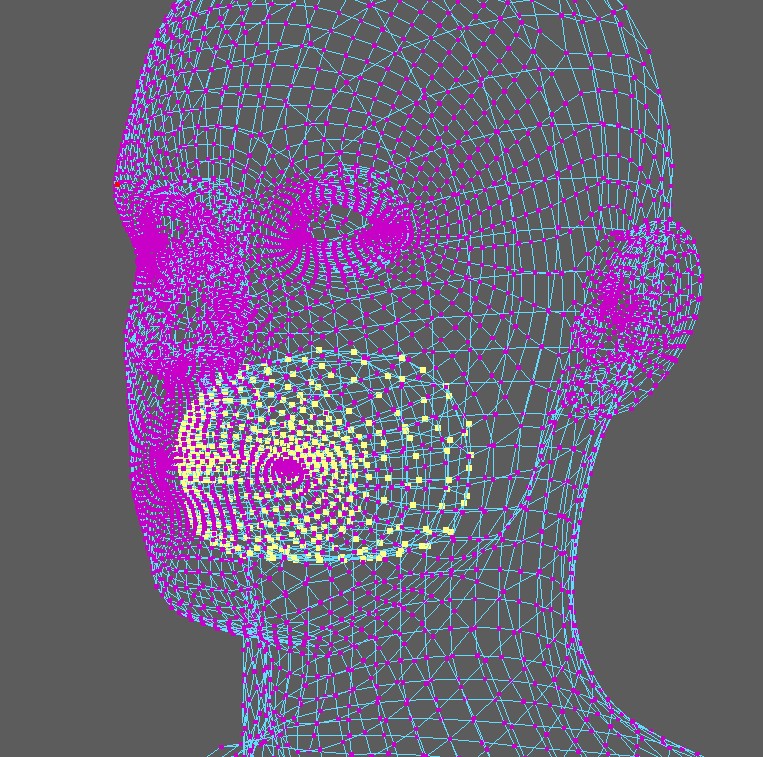

And then before you Match, select the inner mouth vertices of the Source mesh. Basically that tool checks if there's a vertex selection on the Source mesh. And if there is, it will only match the un-selected vertices, and smoothly move the selected vertices:
Alt text
