Face Rigging in Kangaroo has gotten very powerful in version 5. It's got many different setups to choose from for each part - mouth, brows, eyelids, etc - and it's got some general squash/stretch ctrls.

Most of the time you have the option of doing spline setups or blendShapes. You can also mix.

The first thing to do when you do Face Rig is add the python file facePro_v18.py (right click on the Python Files in the builder -> Add File -> +default -> facePro -> facePro_v18.py:
Alt text

Puppet Limbs`

For things like Tongue (Spine), teeth (SingleTransform or Belt) we can use the puppet limbs that we also use for the body. You can even do Tweaker Ctrls if you want to give animators some extra modifiers. But make sure to first read through Face Tweaker Ctrls in here, since those might already give you better options for many cases.

BlendShapes vs Splines`

Most parts of the face (mouth, eyes, ..) come with two options - BlendShapes and Splines.
There are pros and cons to both approaches. Which one you choose depends on a lot of factors, not only the type of character.

But generally, use blendShapes if..

  • you are doing a realistic character, or
  • you have a model team that has the capacity to sculpt blendShapes (not every modeler can model blendShapes!)

Use Spline rigs, if..

  • you have talented riggers (setting up splines requires technical and artistic skills)
  • you feel that blendShapes would appear a bit to static

Keep in mind that you can always use the blendShapes on top of the splines as correctives!

blendShapesAndSliders()

Alt text blendShapesAndSliders() is a very complex function that applies all the blendShapes. But obviously you have to sculpt the blendShapes first and put them at the proper place. All that happens with the Shape Editor.
And make sure that the blendShape file you create with the Shape Editor gets imported and baked in the importBlendShapeFile() function.
blendShapesAndSliders() is the function that takes all those baked target meshes and assigns them as blendShapes.

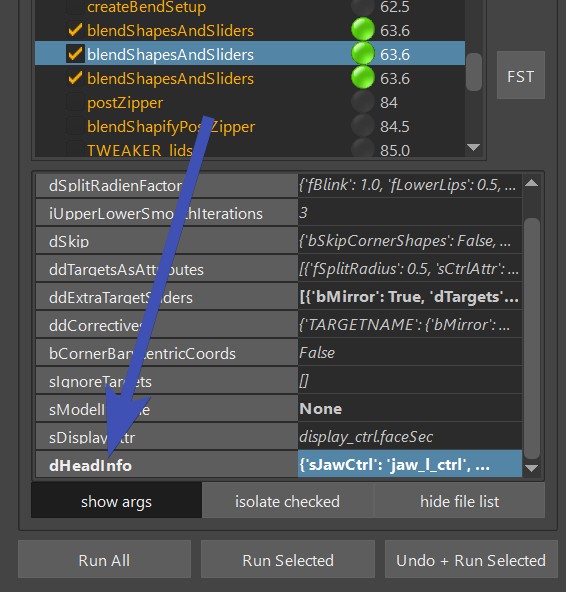

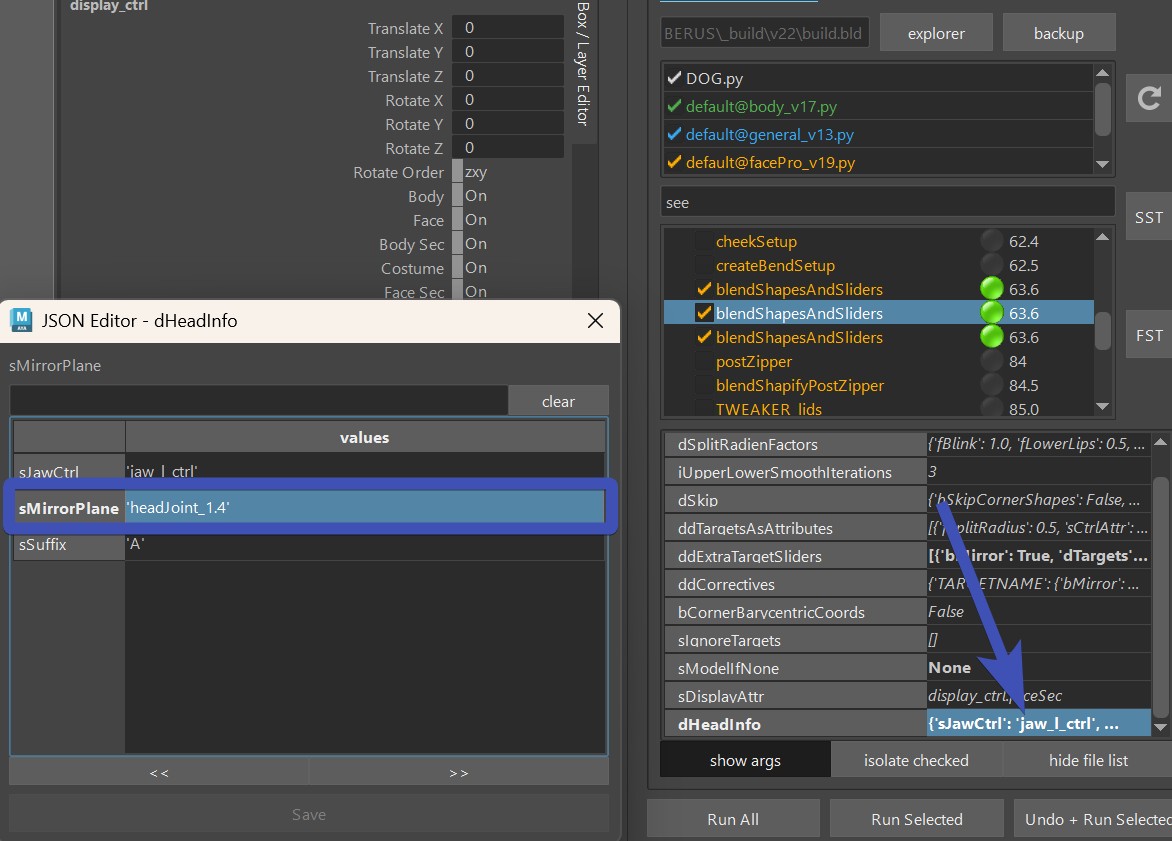

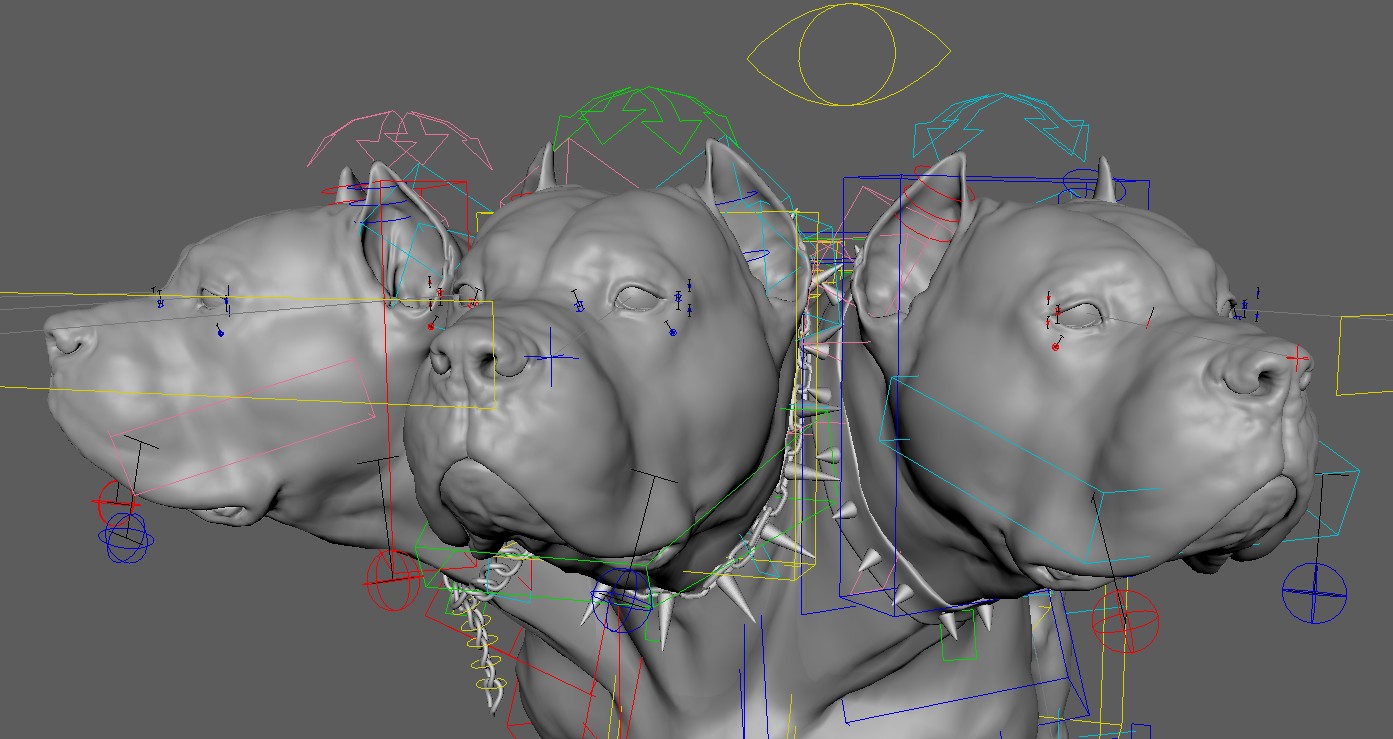

Basically blendShapesAndSliders() knows about a huge list of shapes, and can even do some additional shapes defined in the attributes ddTargetsAsAttributes, ddExtraTargetSliders and ddCorrectives.
It does all this:

  • inverts some against the skinCluster
  • splits the targets (mostly left/right, but also others like lip ctrls, brow spline ctrls and upper/lower eyelids)
  • creates and connects all the Combo Targets
  • creates many slider ctrls

Below you can find an overview of what Targets it accepts.

Eyes

Eyelid Target Lists
For eyelids the ctrls are pretty much the same when you use the blendShape setup or spline setup. Therefore you can use the same blendShapes targets. The only difference is that for the spline rig those blendShape targets act more like correctives.
If you are using the spline rig, you have a few extra ones for correctives:
Eyelid Spline Correctives

Mouth

Mouth Target Lists
Similar for the Eyelids - For the mouth ctrls are pretty much the same when you use the blendShape setup or spline setup. Therefore you can use the same blendShapes targets. The only difference is that for the spline rig those blendShape targets act more like correctives.

Brows

Brows (BlendShape Setup)
Brows (Splines Setup)
For the brows the ctrls are different between the blendShape setup and spline setup. That's why we have different sets of targets:

Some more..

squint
cheekRaiser
cheekIn
cheekOut
puffFront
mentalis
chinRaiser
lipStretch
neckStretch

Define your own Targets

But likely you'll hit a point where you want to add a target that you can't find in any of the list. For that case we have 3 extra attributes on the blendShapesAndSliders() function: ddTargetsAsAttributes, ddExtraTargetSliders and ddCorrectives.

JSON Editor

Before reading those, make sure you know about the JSON Editor, since adjusting those attributes directly would be a nightmare!

Shape Editor

This section doesn't explain how to sculpt the targets, it only shows how to specify them in the builder function. To see how to actually sculpt them, check Shape Editor - Adding more Main Targets

ddTargetsAsAttributes

See how we have some extra phoneme attributes F, O and U on an already existing ctrl?
Alt text
You can create as many as you like, and put them on pretty much any ctrls that is there. And if you define a left ctrl, it automatically splits the shape and puts it onto the left/right ctrls using the fSplitRadius. Alt text

Under sTarget you specify be the name that you define in the Shape Editor ("O" in the picture above). As the attribute goes to 1.0, the target will be activated. You can also add sTargetNeg, which then would get activated as the attribute goes to -1.0.

ddExtraTargetSliders

With the ddExtraTargetSliders attribute you can create new slider ctrls, like this one:
Alt text
We've specified it as bMirror=False, and only added the sTargetUp and sTargetDown shapes: Alt text

Here's another one, where we've set bMirror=True, and also assigned the sTargetIn:
Alt text

Info

You'll see that the blendShapesAndSliders() function creates all the ctrl positions, orientations and scale by guessing based on the direction and distance of the targets. But very often you'll want to adjust that. And it's easy - all explained in SliderBlueprints.

ddCorrectives

The ddCorrectives attribute lets you specify some corrective targets. Here the target names are the keys on the left of the JSON Editor (CornerDownRotateUp, upperLipUp, upperLipIn):
Alt text
In the picture above we just specified some ctrls that are already coming from the face. But it doesn't have to be from the face functions. It can also be a ctrl from the puppet.

Another example with ddCorrectives: The elephant in the picture below was modelled and rigged with a straight trunk. But then we created a corrective for when the trunk was down (created rig attribute that poses the trunk down, and specified that attribute in ddCorrectives). We actually left the main target (trunkDown) as the default, but added Combos for the funnel and noseWrinkler.
Alt text

SliderBlueprints

Slider Blueprints are NOT the blueprints in the puppet tool. Instead they are just some simple joints for the Face Setups. There's no centralized place where you manage them. Instead every function just creates them and puts them into the __sliderBlueprints group. and when you export them, you export them all together. Alt text

Placing them

When creating the initial ones, Kangaroo tries to estimate the position/orientation/scale according to the actual blendShapes. This doesn't always look good by default, so you have the option to adjust them manually.
Most of the time it's best to build until before parallelAttachTransforms(), and then adjust their locations and scale. This way you can test right away if they work well with the blendShape they are driving.

Unfortunately whenever they are driving spline rigs such as the lips spline rig, the live connection from the sliderBlueprints already gets broken in the function where they are created. In those cases you just have to guess when giving them good scale values, and rebuild.

Mirror

While you could theoretically mirror them with the mirror shelf button, usually we mirror them by just not exporting the right side ones, and then the functions create the missing right ones using the left side ones. To specify which ones get exported and which ones not you can switch the doExport attribute on each sliderBlueprint joint

Export

Exporting works with the button -Export *Slider* BPs-. You'll find this button on many functions such as BASELidCtrls(), blendShapesAndSliders() and parallelAttachTransforms(). And it'll do the same thing on each function, it exports ALL the sliderBlueprints, not just the ones of the current function.
Alt text

DEFAULT ATTRS

On many functions you'll see that === DEFAULT ATTRS === button. It deals with attributes that are usually on the passers of the ctrls that can be used to finetune the setup. Sometimes it also handles pose locators.
Alt text

The button lets you Mirror and Fill the attributes. Filling means putting their values into the function attribute.

Kangaroo Tool Tip

If you want to update values after you've filled them, the JSON Editor can help you with this.

Kangaroo Tool Tip

Since most attributes are on passer groups, there's the shelf button Alt text (selPssr), that selects the passers on all selected ctrls.

Watch Out

While it often does pose locators, it's not always the case. Check if that function has an extra button for filling the Pose Locator. If unclear, you can also click the Info or Select option in the Default Attrs menu.

Deformer Order

The order how deformers are applied to the meshes is very important. If you are clicking the function buttons to add influences, it usually takes care of the proper order. But there's many things that can reshuffle the order in a bad way.
So you'll have to check here and there if the order is still correct:

skinCluster__head_geo__BENDTOP
skinCluster__head_geo__BEND
lattice__head_geo__r_EYE
lattice__head_geo__l_EYE
skinCluster__head_geo__TWEAKER
skinCluster__head_geo
blendShape__head_geo
Basically blendShape first, then the main skincluster (the one without a suffix), __TWEAKERS, eye lattices, __BEND and in the end __BENDTOP. This is assuming the head geo is called head_geo, so in your case those deformers might be called different. You might also not have all of them, or you might have some extra ones.
Alt text

Jaw

In the simplest form, the jaw ctrl is just a singleBone limb. Make sure that the blueprints look like this, basically the polevector is pointing downwards, and don't use any Adjust Axis Orient values.
Alt text

Auto Translate

From Shape Editor

If you use the Shape Editor, make sure to keep fOverwriteRotation and fOverwriteTranslation in the jawAutoTranslate() function as None, since those values should be coming from the shape Editor.
And then see Shape Editor - Getting Jaw from the Rig to see how to setup that in the Shape Editor.
The extra rotations (X, Y) and all translations are fully activated on the Z rotation that you've specified in the * button.

Without Shape Editor

If you don't use the Shape Editor, you can set the jaw with the attributes in the image below. Similar to the Shape Editor setup - The extra rotations (X, Y) and all translations are fully activated on the Z rotation (3rd number in OverwriteRotation)

Alt text

Warning

Don't forget to set those values to None if you are getting the jawOpen values from the Shape Editor! If you have some values in there and they are different than what's in the Shape Editor, things can get messy.

jawOpen blendShape Pose

By default the jawOpen blendShape target is NOT getting activated at the same timing of the Auto Translate.

Check in this table to see at which value the jawOpen is getting activated:

Current Functions/Attributes rotateZ value he's using for jawOpen
BASEMouthCtrls() active with bSPLINES as True jawOpen entry in the dPoseCtrlValues
BASEMouthCtrls() active with bSPLINES as False Auto Translate (either Shape Editor or override values)
BASEMouthCtrls() NOT active Auto Translate (either Shape Editor or override values)

So in short - when you doing Mouth splines, it's taking from the dPoseCtrlValues, and it can be an issue that it's different timing than the Auto Translate!
Therefore when you are doing splines, it's recommended to set the jawOpen in dPoseCtrlValues to the same as the rotateZ that you have in the Shape Editor * button or override value.

Why does it not just take the jawOpen rotateZ for mouth splines from the ShapeEditor or override values?

That's because when doing mouth splines, the BASEMouthCtrls() function is also creating locator setup. And it's more important that the jawOpen is following the locator setup than following the RotateZ value

Troubleshooting: Why is the Pose Rig Button in the Shape Editor not going to the correct pose?

Mouth splines:
There's a little gotcha: If you change the jawOpen in the dPoseCtrlValues, you need to rebuild and reference the rig again.
This is some sort of exception, since for most other targets the Pose Rig buttons will take the values directly from the builder.

No Mouth Splines:
You also need to rebuild/rereference the rig, even if you change the values in the * button of the Shape Editor!

Troubleshooting: Why does the jaw rotate sideways if I rotate it upwards?

It's most likely happening because it’s getting the motion from the joints in the blendShape file, and in there the jaw joint is at the origin. Either delete the joints in the blendShape file, or set them properly by getting Skin Setup from the rig.
Or you just disable the jawAutoTranslate function, you may not always need it.
